Tudiving offical store

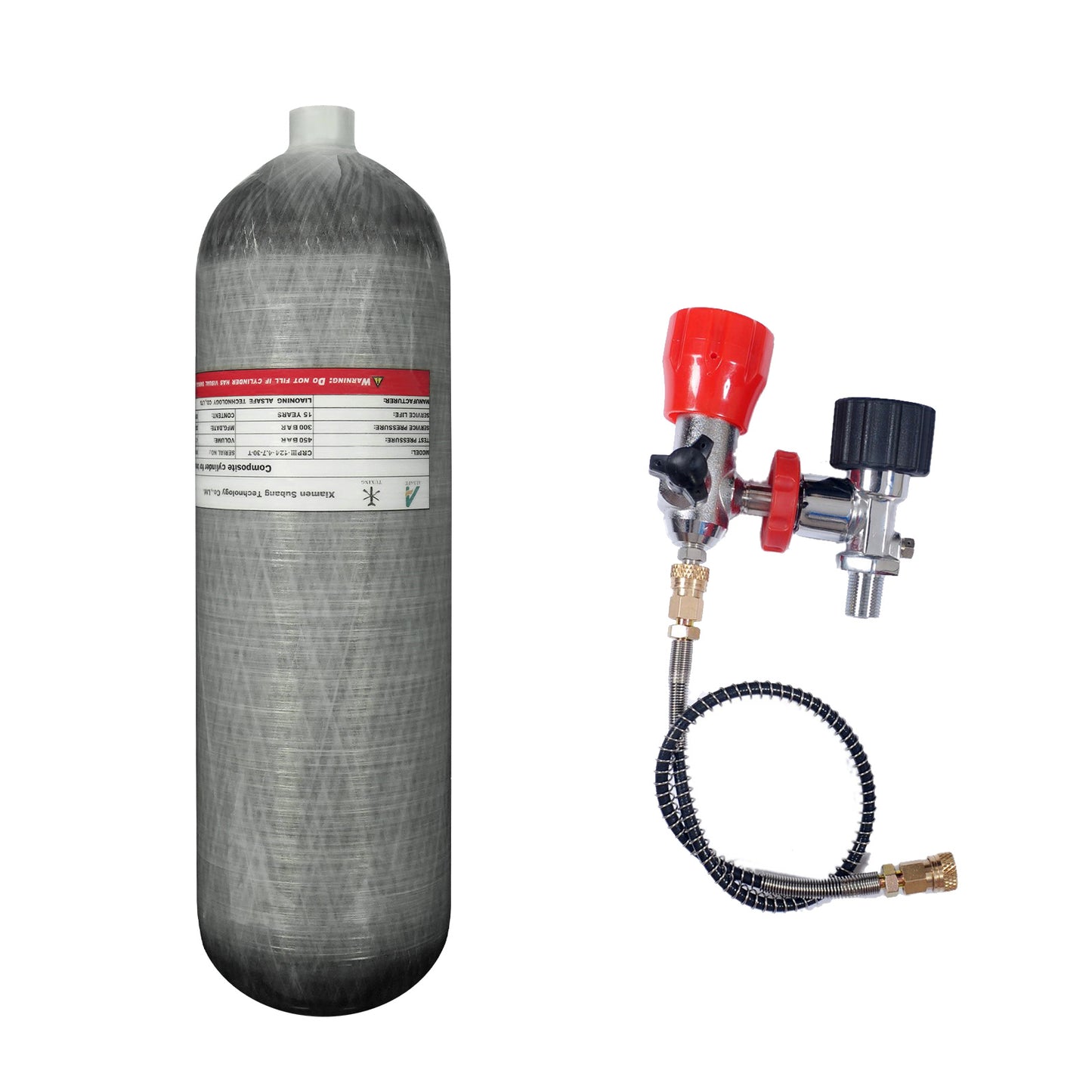

TUDIVING-4.7L 4500Psi Carbon Fiber Cylinder High Pressure Tank,286 Cu in Diving Tank with DIN Valve Scuba Diving Adapter Filling Station,HPA Cylinder Pcp Paintball Air Tank M18*1.5

Name: TUDIVING-4.7L 4500Psi Carbon Fiber Cylinder High Pressure Tank,286 Cu in Diving Tank with DIN Valve Scuba Diving Adapter Filling Station,HPA Cylinder Pcp Paintball Air Tank M18*1.5
Brand: Tudiving offical store
Price: 248.00 USD
Availability: InStock

$248.00 USD

~~$355.00 USD~~ $248.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

【Product Capacity】:Scuba diving tank is 4.7 liters capacity, Product Neck Thread: M18x1.5-6H thread.DIN Valve Scuba Diving Adapter is M18*1.5 thread and equipped with a pressure gauge to check the cylinder pressure in time,very suitable for the use of large-capacity diving cylinders.
【Product Pressure】: 30mpa / 300bar / 4500psi working pressure, 50Mpa hydrostatic test pressure, 102Mpa minimum burst pressure, Product Certification: CE / EN approved (Not DOT), Inspection cycle: 3Yr, Service life: 15Yr.
【Product Structure】: Using high-quality raw material AL6061 aluminum alloy liner with full-wrapped carbon fiber and glass fiber winding, external surface treatment is epoxy coated, high strength features creep resistance, shock resistance and corrosion resistance.
【Product Testing Performance】: One of the safety tests is the hydrostatic test pressure, for carbon fiber cylinders, it can reach 50Mpa. The other is the minimum burst pressure, which can reach 102Mpa for carbon fiber cylinders, can hold more gas under the same volume conditions.
【Product Advantage】: Carbon fiber composite air cylinder is a new material cylinder developed in recent years. Compared with the traditional steel cylinders, the weight is reduced by 70%, the corrosion resistance is strong, there is no magnetic property, the performance is stable, and the inner surface is specially treated to ensure that the holding gas is clean and has no odor, long service life (The service life is 15 years).

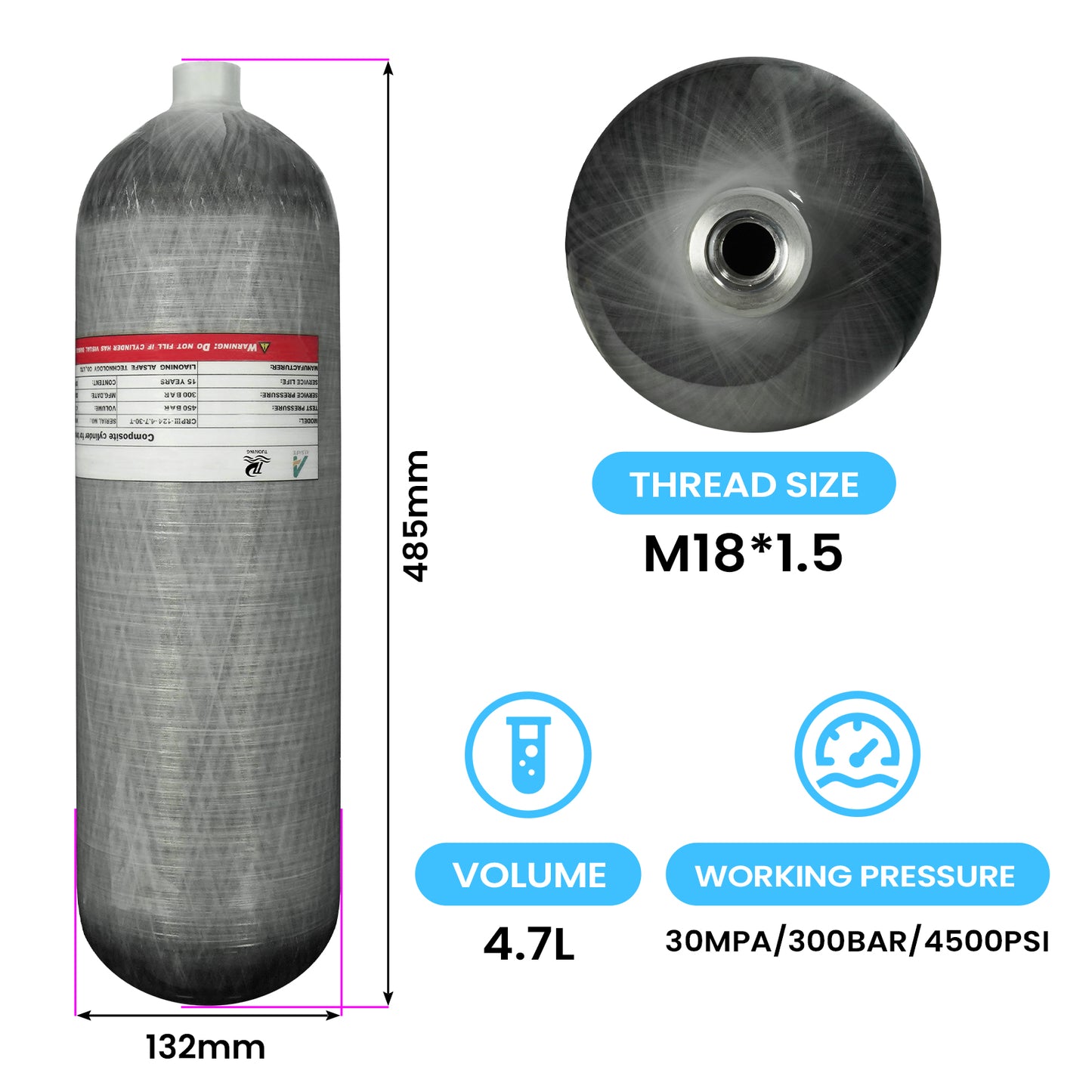

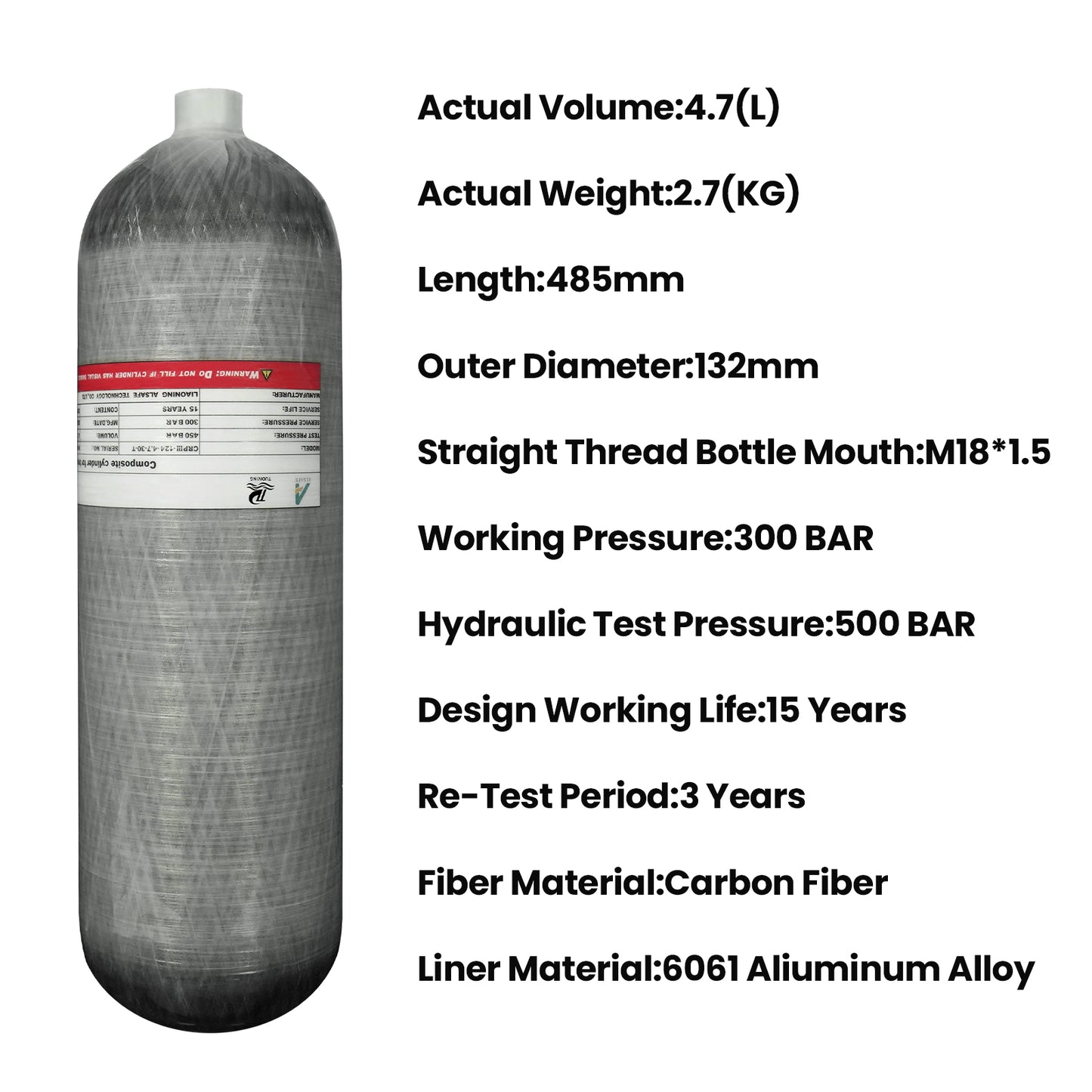

Specification

ActualVolume:4.7(L),

Actualweight:2.7(KG)

Length:485mm,

Outer Diameter:132mm

Working Pressure:300 BAR

Hydraulic Test Pressure:500 BAR

Design working Life:15 Years

Re-Test Period:3 Years

Fiber Material:Carbon Fiber

This valve fit for Carbon fiber tank to vial standard adapter system, 8mm quick disconnect male output directly into air cylinder, with standard high pressure port and quick refilling.

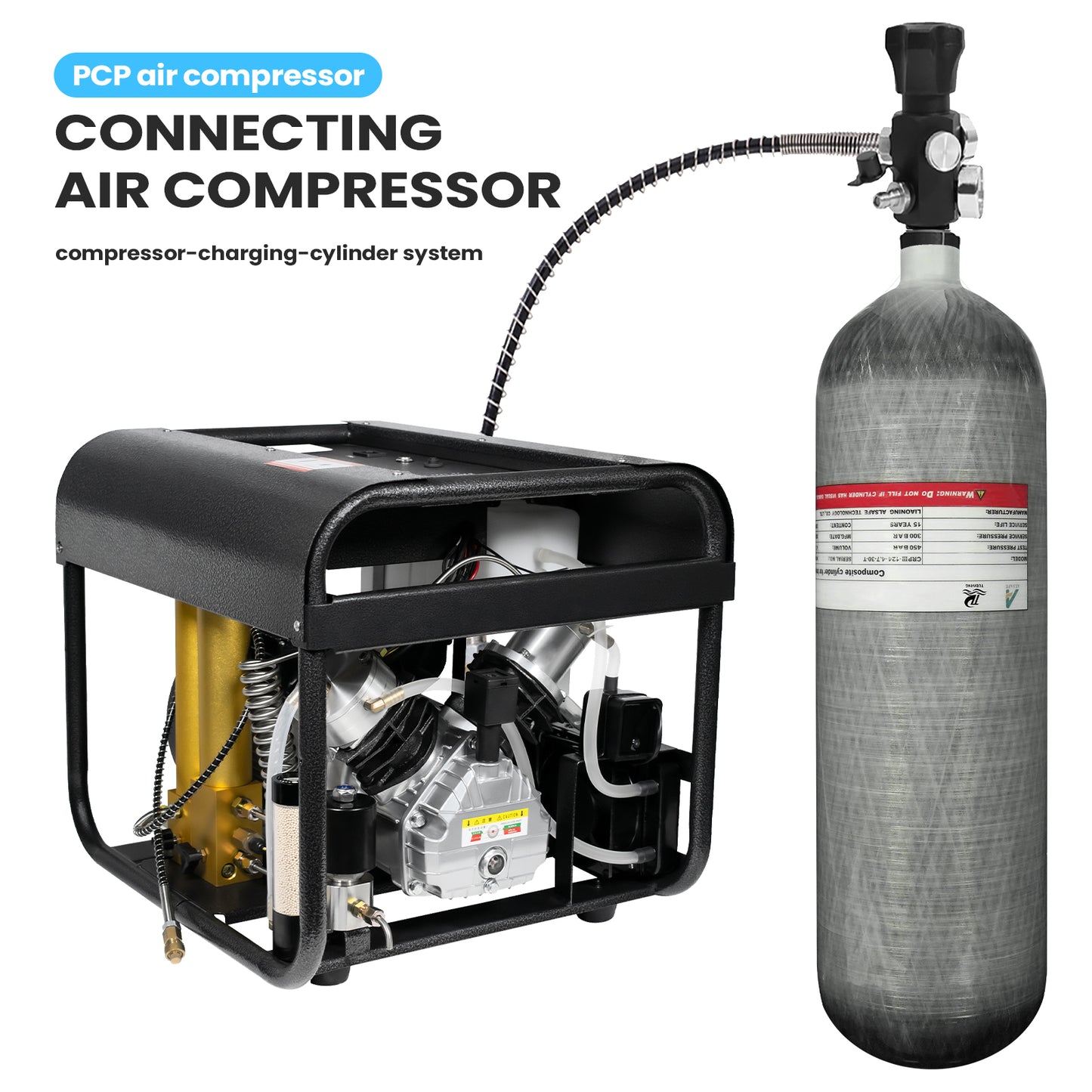

Connecting air compressor

compressor charging cylinder system

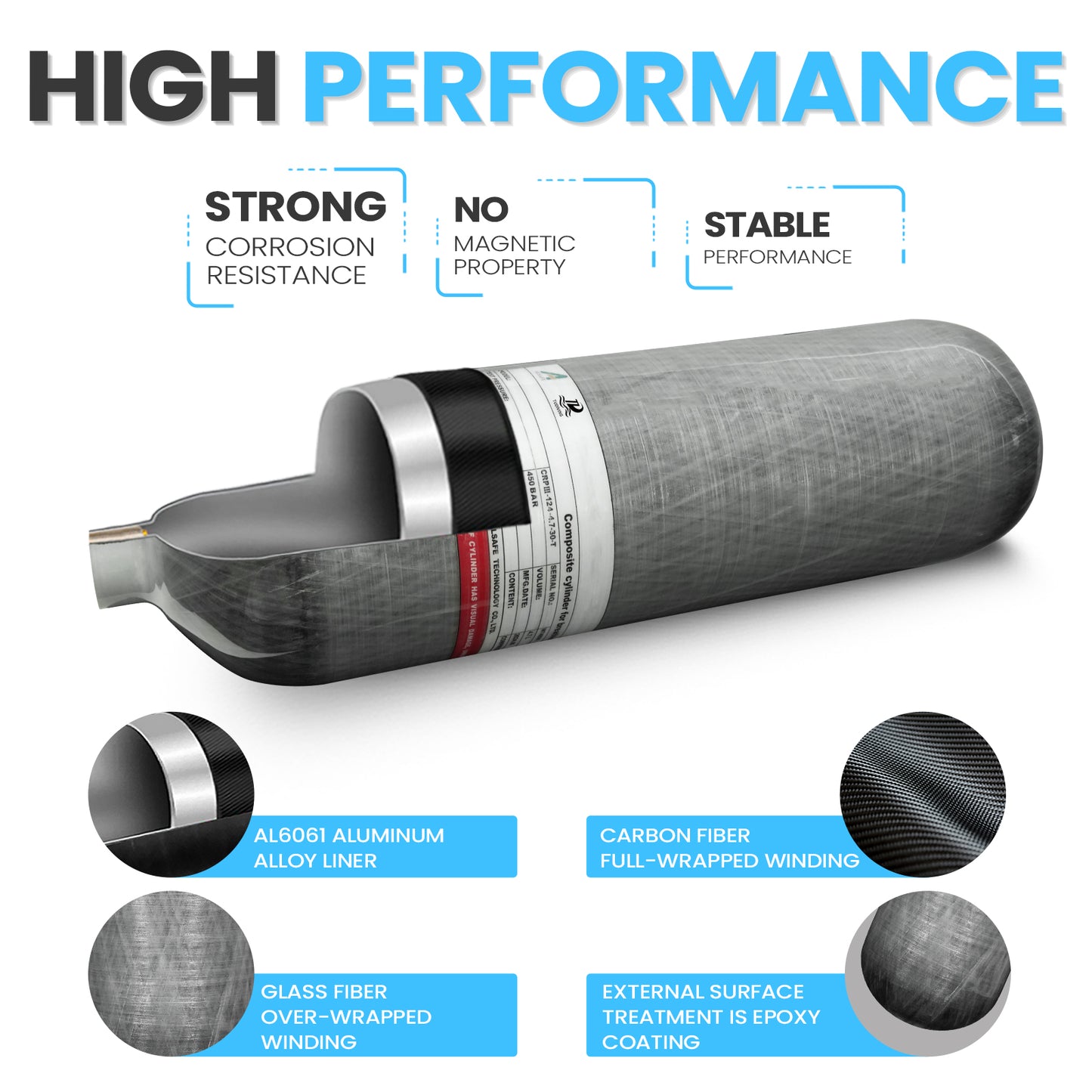

Product Analysis

Carbon fiber tank made of straight thread bottle mouth , Aluminum alloy liner , High-strength carbon fiber layer , Glass fiber protective layer
Wide application

Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency etc. Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy, it can be used in various positive pressure breathing apparatus.
Application:

It can be used in Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency.

Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy.

Buyer Attention: Products are export-only merchandise and cannot be used, resold or re-entered into the commerce of the territory of the People’s Republic of China, whether directly or indirectly.
