TUDIVING-4500Psi Scuba Diving Tank,9L Carbon Fiber Scuba Tank with Diving Valve,549 Cu in 9000CC High Pressure Composite Cylinder for Pcp Air Rifle Fire-Fighting Snorkeling Water Sports

Name: TUDIVING-4500Psi Scuba Diving Tank,9L Carbon Fiber Scuba Tank with Diving Valve,549 Cu in 9000CC High Pressure Composite Cylinder for Pcp Air Rifle Fire-Fighting Snorkeling Water Sports
Brand: Tudiving offical store
Price: 350.00 USD
Availability: InStock

$350.00 USD

~~$500.00 USD~~ $350.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

【Product Capacity】:Scuba diving tank is 9 liters capacity, Product Neck Thread: M18x1.5-6H thread.DIN/YOKE Valve is M18*1.5 thread,very suitable for the use of large-capacity diving cylinders.
【Product Pressure】: 30mpa / 300bar / 4500psi working pressure, 50Mpa hydrostatic test pressure, 102Mpa minimum burst pressure, Product Certification: CE / EN approved (Not DOT), Inspection cycle: 3Yr, Service life: 15Yr.
【Product Structure】: Using high-quality raw materials AL6061 aluminum alloy liner with full-wrapped carbon fiber and glass fiber winding, external surface treatment is epoxy coated, high strength features creep resistance, shock resistance and corrosion resistance.
【Product Advantage】: Carbon fiber composite air cylinder is a new material cylinder developed in recent years. Compared with the traditional steel cylinders, the weight is reduced by 70%, the corrosion resistance is strong, there is no magnetic property, the performance is stable, and the inner surface is specially treated to ensure that the holding gas is clean and has no odor, long service life (The service life is 15 years).
【Product Application】: Loading gas, Emergency escape respirator, Fire breathing apparatus, Underwater breathing apparatus, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency etc. Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy, it can be used in various positive pressure breathing apparatus.

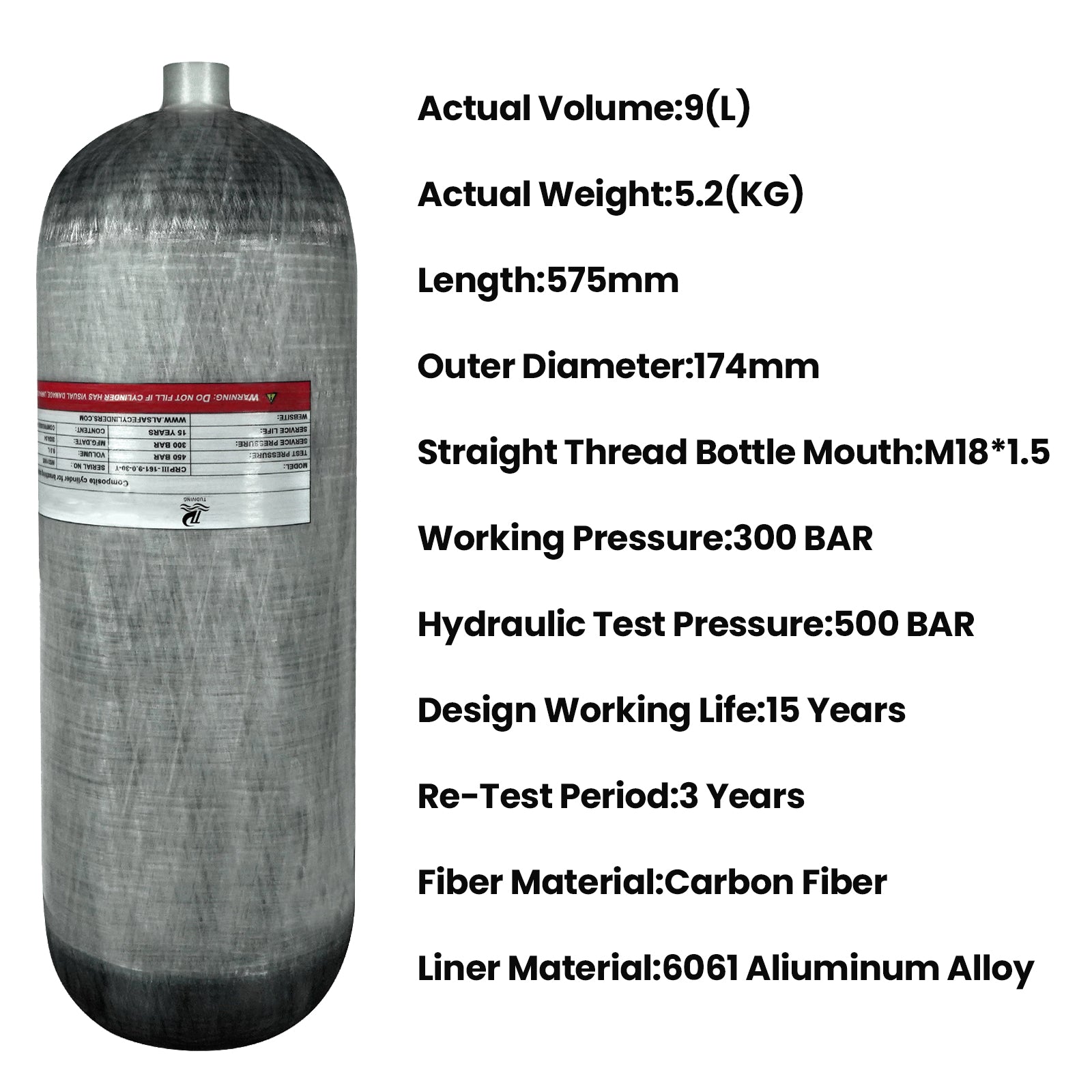

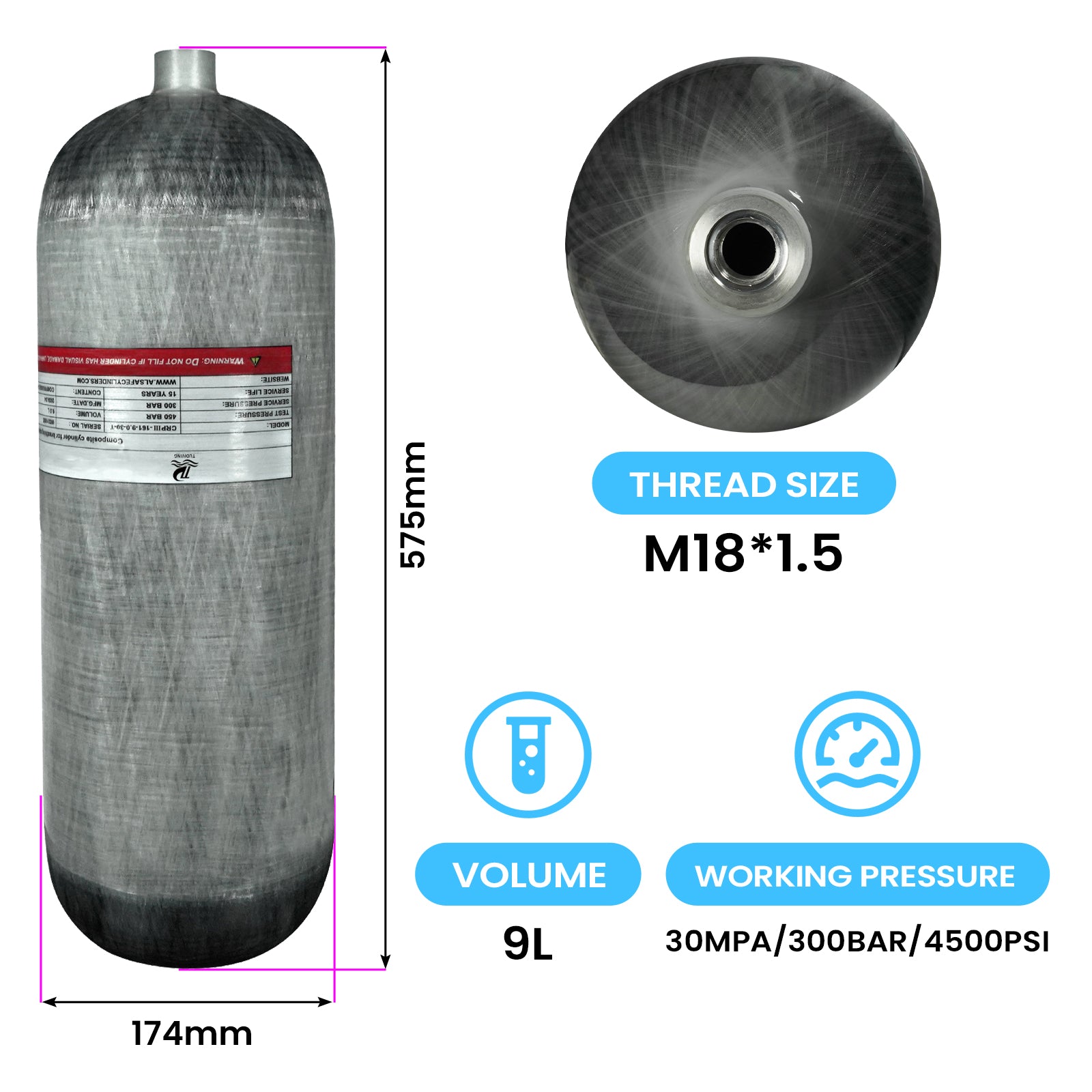

Specification

ActualVolume:9(L),

Actualweight:.5.2(KG)

Length:575mm,

Outer Diameter:174mm

Working Pressure:300 BAR

Hydraulic Test Pressure:500 BAR

Design working Life:15 Years

Re-Test Period:3 Years

Fiber Material:Carbon Fiber

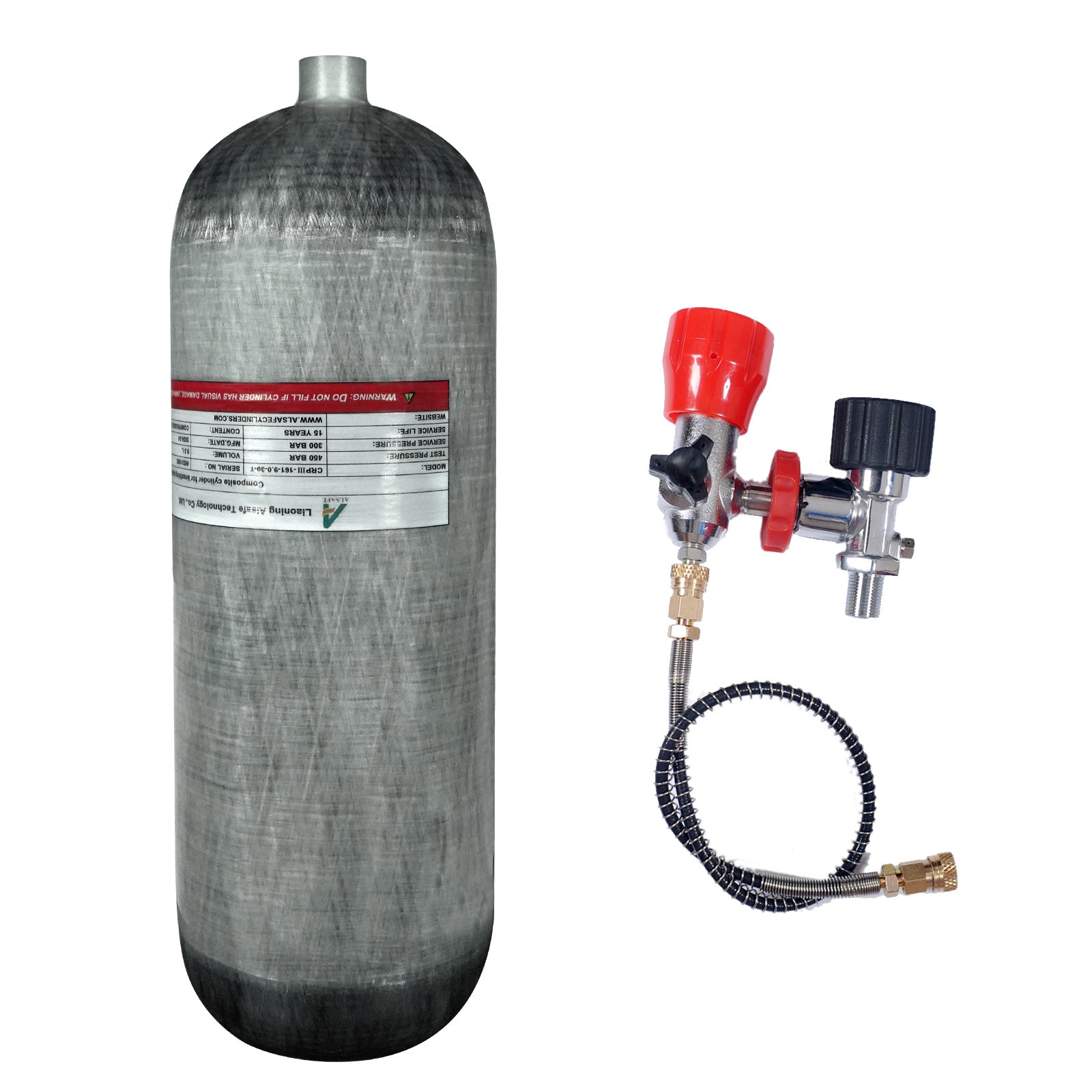

This valve fit for Carbon fiber tank to vial standard adapter system, 8mm quick disconnect male output directly into air cylinder, with standard high pressure port and quick refilling.

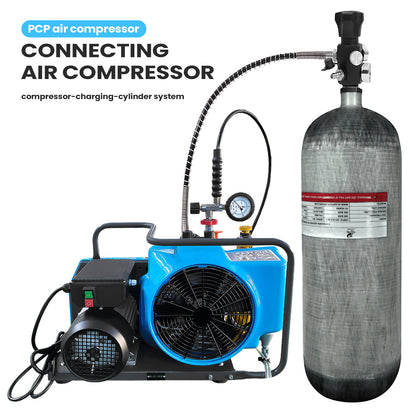

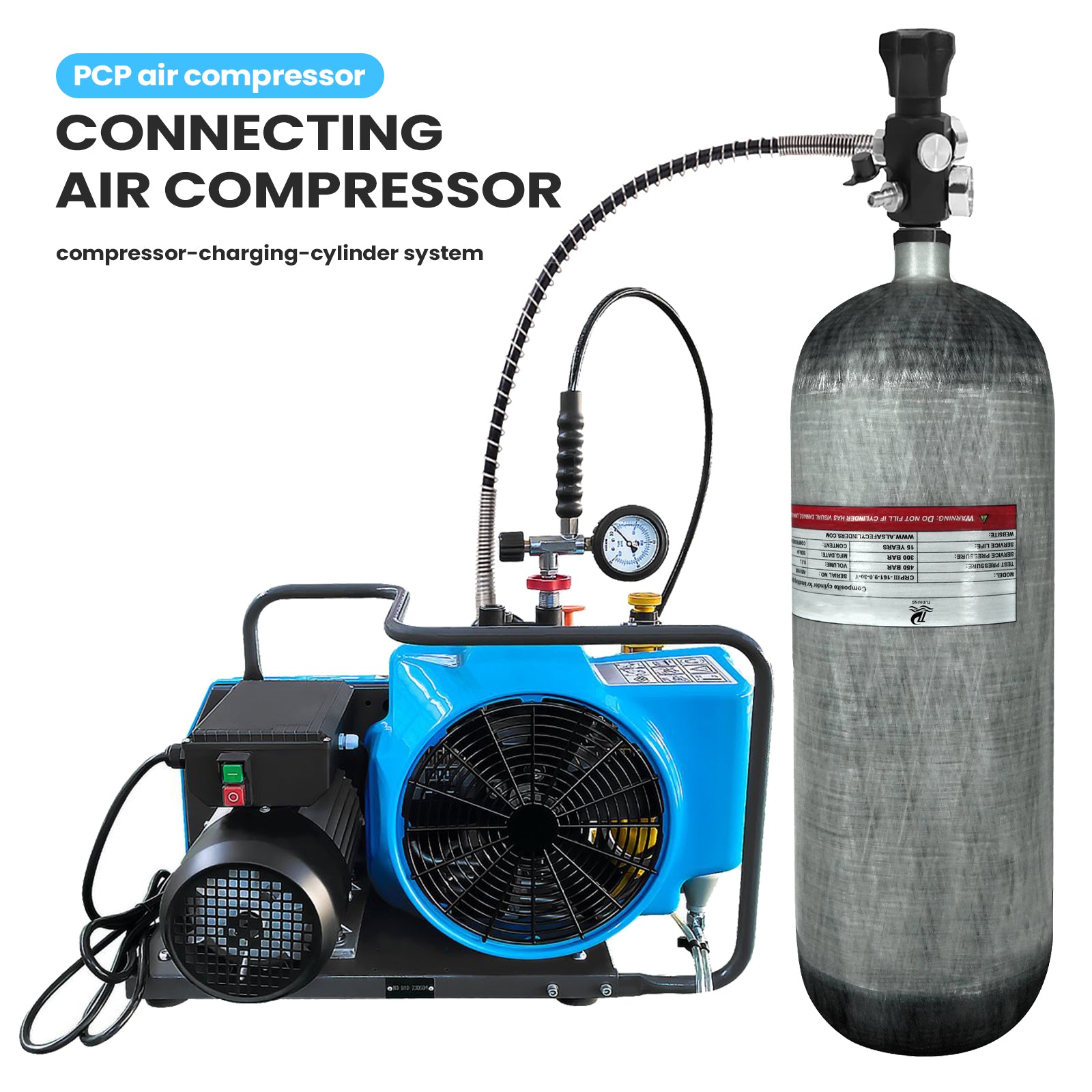

Connecting air compressor

compressor charging cylinder system

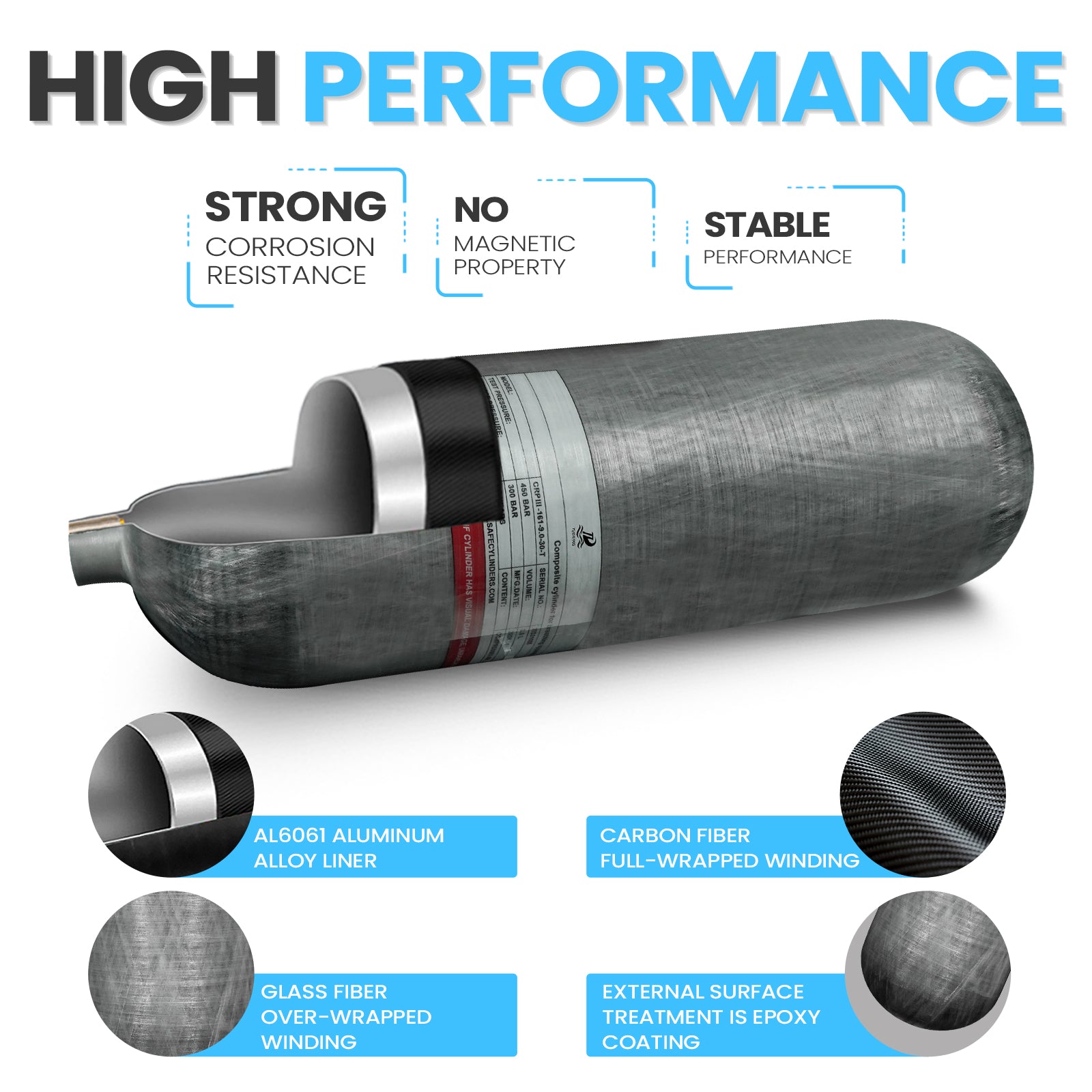

Product Analysis

Carbon fiber tank made of straight thread bottle mouth , Aluminum alloy liner , High-strength carbon fiber layer , Glass fiber protective layer
Wide application

Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency etc. Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy, it can be used in various positive pressure breathing apparatus.
Application:

It can be used in Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency.

Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy.
