TUDIVING-Portable Scuba Tank Compressor,Built-in Water Cooling and Filtration System,Auto Stop Version Pcp Compressor,Scuba Compressor for Filling Scuba Diving Tank Paintball Air Rifle 110V-220V(TXEDT032)
TUDIVING-Portable Scuba Tank Compressor,Built-in Water Cooling and Filtration System,Auto Stop Version Pcp Compressor,Scuba Compressor for Filling Scuba Diving Tank Paintball Air Rifle 110V-220V(TXEDT032)
Couldn't load pickup availability
- 【Product Specifications】: TUDIVING This scuba compressor is equipped with 110v power supply and can be used with household power supply. Working pressure: 30MPA/300bar/4500psi, flow rate: 50L/min, power: 2.2kw, High pressure air pump inflating speed: 2800r/min, very suitable for large-capacity bottle filling,only 30 minutes to fill full 6.8L tank to 300Bar.

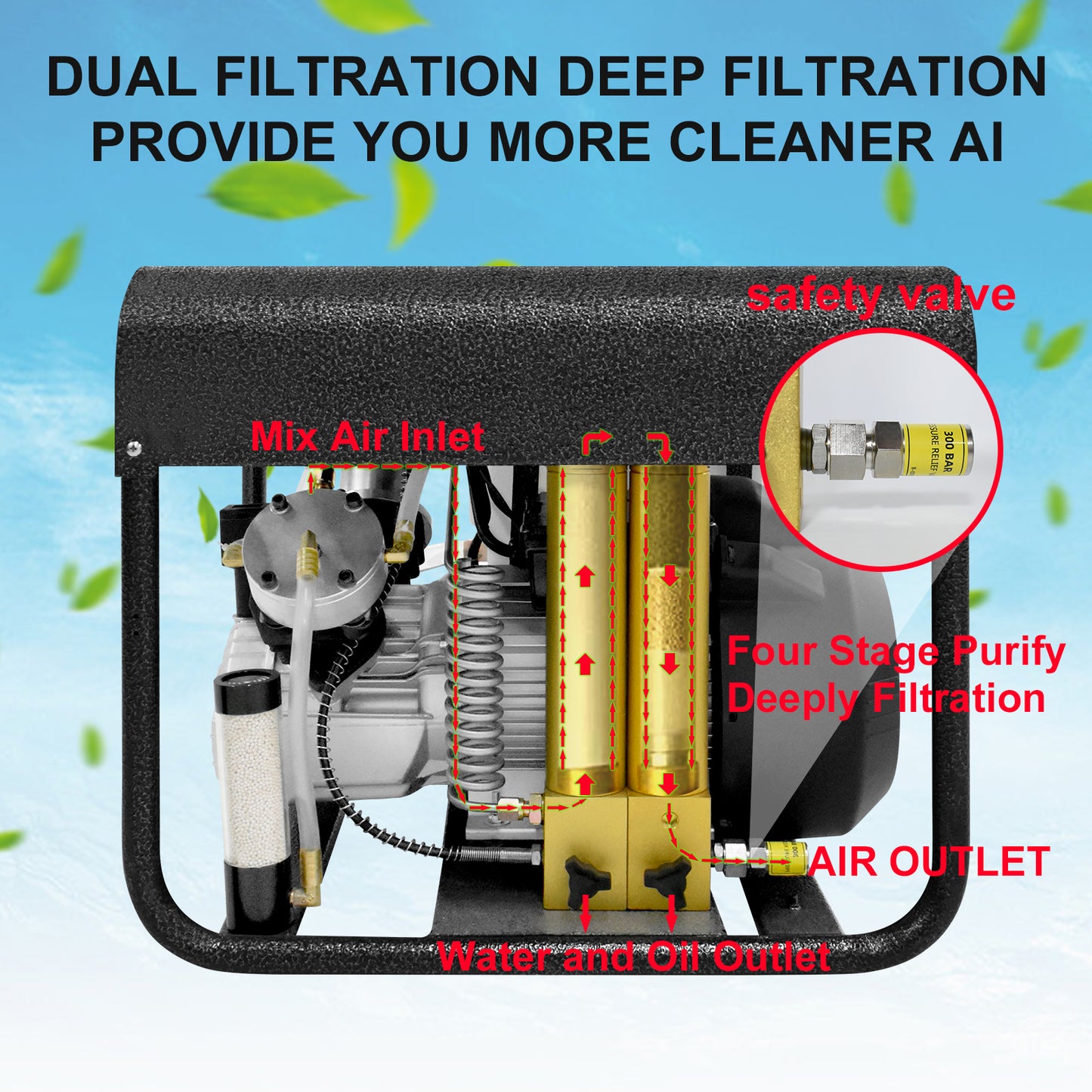

- 【Oil/Water Separator】: Double Cylinder PCP Air Compressor has a built-in two-stage filtration system, which can make the air cleaner. Attached blue oil and water filter, very suitable for diving use, using safety valve, it will automatically purify after overpressure. The inflation nozzle is an 8mm quick connector, which can be quickly connected and disconnected.
- 【Built-in Water and Fan Cooling System】: The air compressor is built-in water and fan cooling system,Built-in large volume water tank,Radiator cooling system,Three fans strongly lower the temperature in large area.Good cooling effect makes the compressor more durable.Easy to carry the compressor outside.
- 【Instrument Design】: This PCP air compressor has an adjustable pressure gauge, which is an automatic air compressor that will automatically stop filling when the pressure reaches the pressure you set. The maximum pressure can reach 4500Psi.
- 【Wide Application】: PCP air compressor very suitable for diving, firefighting, paintball, leak detection, pressure testing, automobiles, air tightness testing, pressure testing, etc. We come with an operating manual and if you have any questions, our service team is always here to answer your questions.
-
Why choose us?
- TUDIVING means time for underwater diving to explore the wonders beneath the waves.
- TD logo means to diving like waves to where what we want. It also like one sailboat to protect us go faster.
- TUDIVING is committed to providing each customer the highest quality outdoor and sports product.Let everyone experience the joy of diving!
Specification
- Model Number: TXEDT032
- Function: Shut off the compressor automatically
- Working pressure: 4500Psi/30Mpa/300Bar
- Cooling systen: Water and fan cooling
- Air flow rate: 50L/min
- Inflating speed: 2800R/min

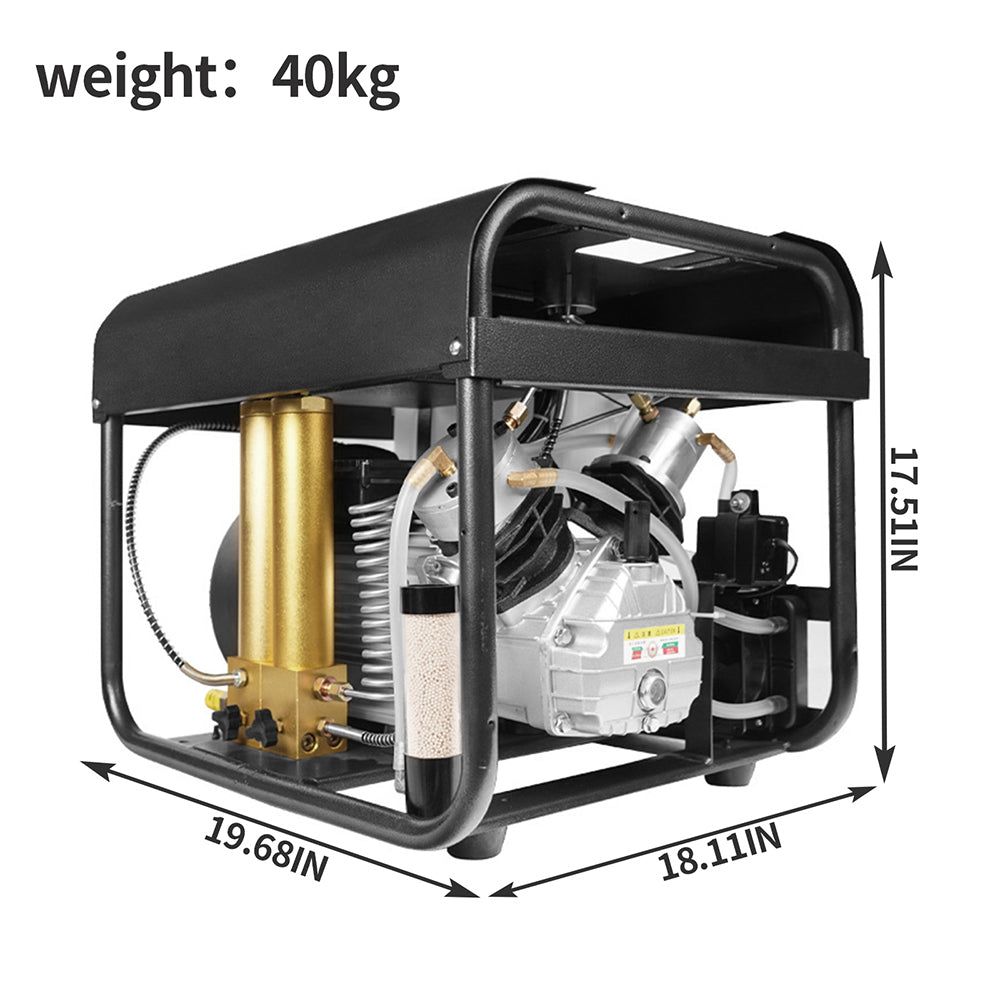

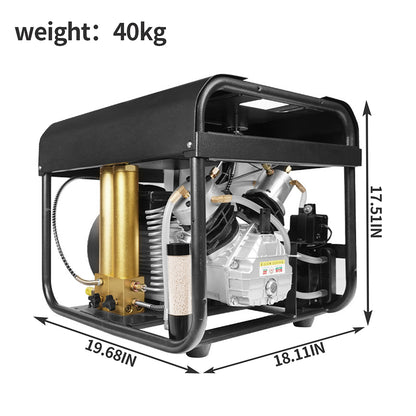

- Size：19.68"L x 18.11"W x 17.51"H
- Item Weight：91.3 pounds
Air intake filtration system

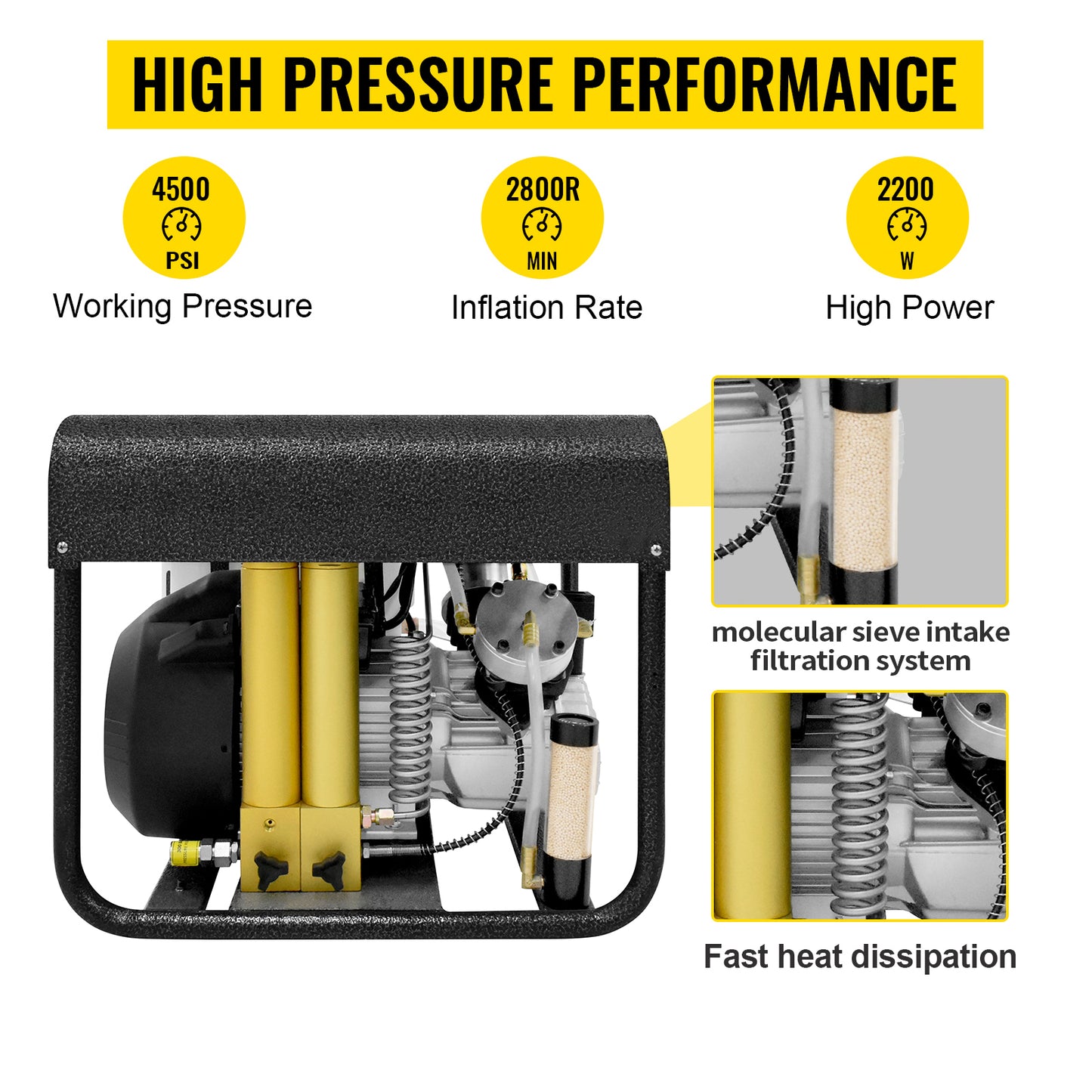

Double filter +molecular sieve intake filtration system,Really achieve air filtration from compressor
Three fans
Three fans strongly lower the temperature in large area.The fan blades will run five times in a circle by using the technology calculation method,which makes the air flow stronger.The air flow can make the motor cooling faster in order to extend the service life of the motor
Cooling system
we needn't connect to the water pump outside without water bucket,
Fast heat dissipation.Good cooling system can make the compressor continuous working
After receiving the compressor, please note the following:
1. Please check whether the outer packaging and the machine are damaged;
2. The compressor temperature should not exceed 85℃ or the running time does not exceed 45 minutes;
3. Do remember put on the breathing rods the replace the oil cap , then add oil to the leval of the red dot;
4. The compressor will install one filter along with the filling hose in order to make good air quality.
5. When connecting the filter and hose, please make sure that the blue filter and hose have been assembled and there is no leakage;
6. Due to transportation restrictions, the compressor does not come with silicone oil, so buyers need to prepare silicone oil by themselves
7.The filling pressure does not exceed 300Bar/4500PSI/30MPA
